95 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 30 MHz to 3 GHz

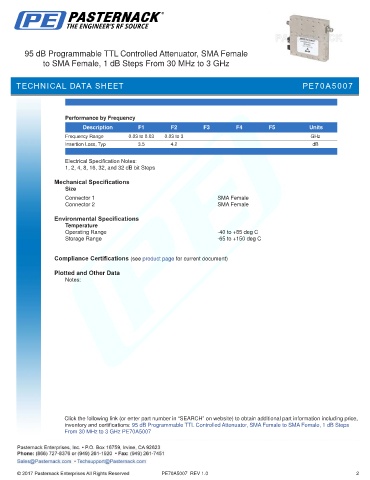

TECHNICAL DATA SHEET PE70A5007

. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range 0.03 to 0.03 0.03 to 3 GHz
Insertion Loss, Typ 3.5 4.2 dB
.
Electrical Specification Notes:
1, 2, 4, 8, 16, 32, and 32 dB bit Steps

Mechanical Specifications
Size
.
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -65 to +150 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 95 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 30 MHz to 3 GHz PE70A5007

PE70A5007 REV 1.0 2
