60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA
Female To SMA Female, 0.25 dB Steps From 30 MHz To 6 GHz

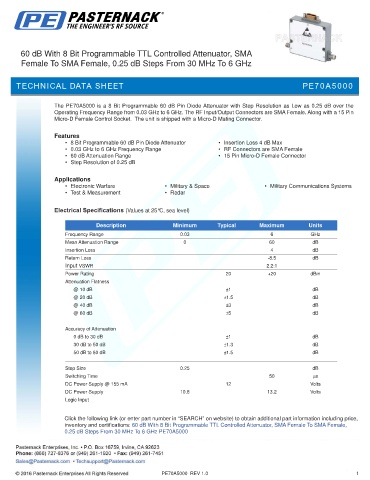

TECHNICAL DATA SHEET PE70A5000

The PE70A5000 is a 8 Bit Programmable 60 dB Pin Diode Attenuator with Step Resolution as Low as 0.25 dB over the
Operating Frequency Range from 0.03 GHz to 6 GHz. The RF Input/Output Connectors are SMA Female. Along with a 15 Pin
Micro-D Female Control Socket. The unit is shipped with a Micro-D Mating Connector.

Features
• 8 Bit Programmable 60 dB Pin Diode Attenuator • Insertion Loss 4 dB Max
• 0.03 GHz to 6 GHz Frequency Range • RF Connectors are SMA Female
• 60 dB Attenuation Range • 15 Pin Micro-D Female Connector
• Step Resolution of 0.25 dB

Applications
• Electronic Warfare • Military & Space • Military Communications Systems
• Test & Measurement • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.03 6 GHz
Mean Attenuation Range 0 60 dB
Insertion Loss 4 dB
Return Loss -8.5 dB
Input VSWR 2.2:1
Power Rating 20 +20 dBm
Attenuation Flatness
@ 10 dB ±1 dB
@ 20 dB ±1.5 dB
@ 40 dB ±3 dB
@ 60 dB ±5 dB
.
Accuracy of Attenuation
0 dB to 30 dB ±1 dB
30 dB to 50 dB ±1.3 dB
50 dB to 60 dB ±1.5 dB
.
Step Size 0.25 dB
Switching Time 50 µs
DC Power Supply @ 155 mA 12 Volts
DC Power Supply 10.8 13.2 Volts
Logic Input

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female,
0.25 dB Steps From 30 MHz To 6 GHz PE70A5000

PE70A5000 REV 1.0 1
