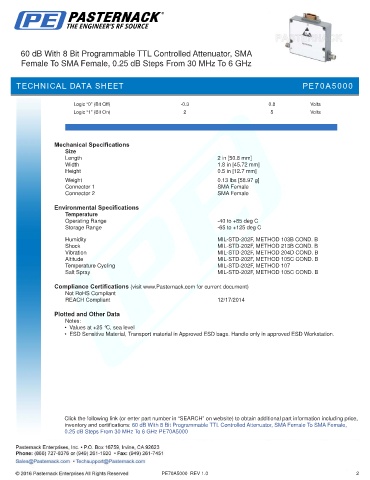

60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA
Female To SMA Female, 0.25 dB Steps From 30 MHz To 6 GHz

TECHNICAL DATA SHEET PE70A5000

Logic “0” (Bit Off) -0.3 0.8 Volts
Logic “1” (Bit On) 2 5 Volts
.
. .

Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 1.8 in [45.72 mm]
Height 0.5 in [12.7 mm]
.
Weight 0.13 lbs [58.97 g]
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -65 to +125 deg C

Humidity MIL-STD-202F, METHOD 103B COND. B
Shock MIL-STD-202F, METHOD 213B COND. B
Vibration MIL-STD-202F, METHOD 204D COND. B
Altitude MIL-STD-202F, METHOD 105C COND. B
Temperature Cycling MIL-STD-202F, METHOD 107
Salt Spray MIL-STD-202F, METHOD 105C COND. B

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant
REACH Compliant 12/17/2014

Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female,
0.25 dB Steps From 30 MHz To 6 GHz PE70A5000

PE70A5000 REV 1.0 2
