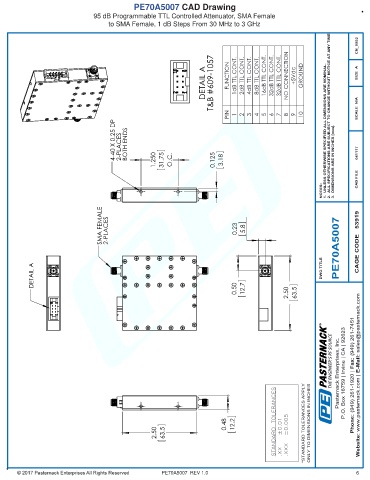

PE70A5007 CAD Drawing
95 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 30 MHz to 3 GHz

CN_0992

DETAIL A T&B #609-1057 FUNCTION 1dB TTL CONT. 2dB TTL CONT. 4dB TTL CONT. 8dB TTL CONT. 16dB TTL CONT. 32dB TTL CONT. 32dB TTL CONT. NO CONNECTION +5Vdc GROUND SIZE A

PIN 1 2 3 4 5 6 7 8 9 10 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
4-40 X 0.25 DP 2-PLACES BOTH ENDS 1.250 31.75 O.C. 0.125 3.18 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 041117

NOTES: CAD FILE

SMA FEMALE 2-PLACES 0.23 5.8 PE70A5007 CAGE CODE 53919

DETAIL A DWG TITLE

0.50 12.7 2.50 63.5

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES

0.48 12.2 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
2.50 63.5 .XX ±0.01 .XXX ±0.005

PE70A5007 REV 1.0 6
