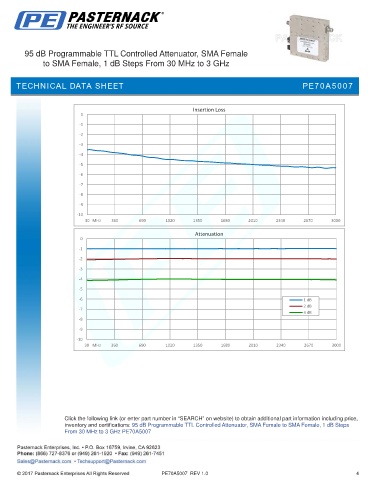

95 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 30 MHz to 3 GHz
TECHNICAL DATA SHEET PE70A5007
Insertion Loss
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
-10
30 MHz 360 690 1020 1350 1680 2010 2340 2670 3000
Attenuation
0
-1
-2
-3
-4
-5
-6 1 dB
2 dB
-7
4 dB
-8
-9
-10
30 MHz 360 690 1020 1350 1680 2010 2340 2670 3000
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 95 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 30 MHz to 3 GHz PE70A5007
