95 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

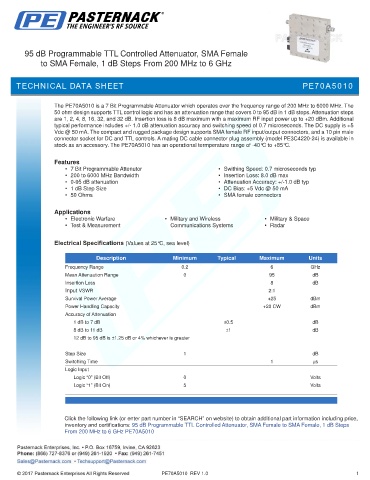

TECHNICAL DATA SHEET PE70A5010

The PE70A5010 is a 7 Bit Programmable Attenuator which operates over the frequency range of 200 MHz to 6000 MHz. The
50 ohm design supports TTL control logic and has an attenuation range that covers 0 to 95 dB in 1 dB steps. Attenuation steps
are 1, 2, 4, 8, 16, 32, and 32 dB. Insertion loss is 8 dB maximum with a maximum RF input power up to +20 dBm. Additional
typical performance includes +/- 1.0 dB attenuation accuracy and switching speed of 0.7 microseconds. The DC supply is +5
Vdc @ 50 mA. The compact and rugged package design supports SMA female RF input/output connectors, and a 10 pin male
connector socket for DC and TTL controls. A mating DC cable connector plug assembly (model PE3C4220-24) is available in
stock as an accessory. The PE70A5010 has an operational termperature range of -40°C to +85°C.

Features
• 7 Bit Programmable Attenutor • Swithing Speed: 0.7 microseconds typ
• 200 to 6000 MHz Bandwidth • Insertion Loss: 8.0 dB max
• 0-95 dB attenuation • Attenuation Accuracy: +/-1.0 dB typ
• 1 dB Step Size • DC Bias: +5 Vdc @ 50 mA
• 50 Ohms • SMA female connectors

Applications
• Electronic Warfare • Military and Wireless • Military & Space
• Test & Measurement Communications Systems • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.2 6 GHz
Mean Attenuation Range 0 95 dB
Insertion Loss 8 dB
Input VSWR 2:1
Survival Power Average +25 dBm
Power Handling Capacity +20 CW dBm
Accuracy of Attenuation
1 dB to 7 dB ±0.5 dB
8 dB to 11 dB ±1 dB
12 dB to 95 dB is ±1.25 dB or 4% whichever is greater
.
Step Size 1 dB
Switching Time 1 µs
Logic Input
Logic “0” (Bit Off) 0 Volts
Logic “1” (Bit On) 5 Volts
.
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 95 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 200 MHz to 6 GHz PE70A5010

PE70A5010 REV 1.0 1
