95 dB Programmable USB Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

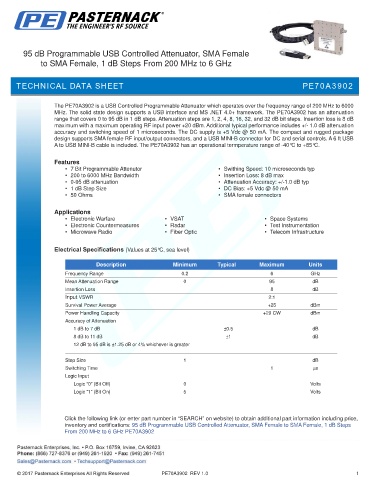

TECHNICAL DATA SHEET PE70A3902

The PE70A3902 is a USB Controlled Programmable Attenuator which operates over the frequency range of 200 MHz to 6000
MHz. The solid state design supports a USB interface and MS .NET 4.0+ framework. The PE70A3902 has an attenuation
range that covers 0 to 95 dB in 1 dB steps. Attenuation steps are 1, 2, 4, 8, 16, 32, and 32 dB bit steps. Insertion loss is 8 dB
maximum with a maximum operating RF input power +20 dBm. Additional typical performance includes +/- 1.0 dB attenuation
accuracy and switching speed of 1 microseconds. The DC supply is +5 Vdc @ 50 mA. The compact and rugged package
design supports SMA female RF input/output connectors, and a USB MINI-B connector for DC and serial controls. A 6 ft USB
A to USB MINI-B cable is included. The PE70A3902 has an operational termperature range of -40°C to +85°C.

Features
• 7 Bit Programmable Attenutor • Swithing Speed: 10 microseconds typ
• 200 to 6000 MHz Bandwidth • Insertion Loss: 8 dB max
• 0-95 dB attenuation • Attenuation Accuracy: +/-1.0 dB typ
• 1 dB Step Size • DC Bias: +5 Vdc @ 50 mA
• 50 Ohms • SMA female connectors

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.2 6 GHz
Mean Attenuation Range 0 95 dB
Insertion Loss 8 dB
Input VSWR 2:1
Survival Power Average +25 dBm
Power Handling Capacity +20 CW dBm
Accuracy of Attenuation
1 dB to 7 dB ±0.5 dB
8 dB to 11 dB ±1 dB
12 dB to 95 dB is ±1.25 dB or 4% whichever is greater
.
Step Size 1 dB
Switching Time 1 µs
Logic Input
Logic “0” (Bit Off) 0 Volts
Logic “1” (Bit On) 5 Volts
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 95 dB Programmable USB Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 200 MHz to 6 GHz PE70A3902

PE70A3902 REV 1.0 1
