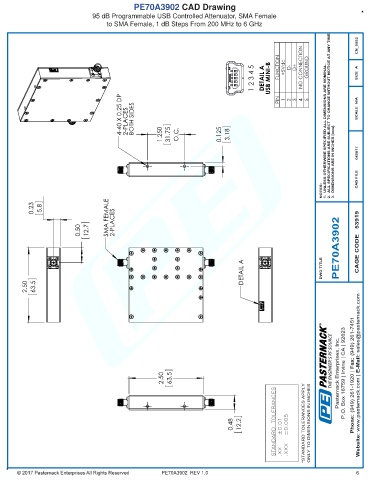

PE70A3902 CAD Drawing
95 dB Programmable USB Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

CN_0992

1 2 3 4 5 DETAIL A USB MINI-B FUNCTION +5Vdc D- D+ NO CONNECTION GROUND SIZE A

4-40 X 0.25 DP 2-PLACES BOTH SIDES 1.250 31.75 O.C. 0.125 3.18 PIN 1 2 3 4 5 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 040817

NOTES: CAD FILE

0.23 5.8

SMA FEMALE 2-PLACES
0.50 12.7

PE70A3902 CAGE CODE 53919

DETAIL A DWG TITLE

2.50 63.5

R
THE ENGINEER'S RF SOURCE

Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623
2.50 63.5 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES

0.48 12.2 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.XX ±0.01 .XXX ±0.005

PE70A3902 REV 1.0 6
