Voltage Variable PIN Diode Attenuator, 0 to 30 dB, DC to
20 GHz, Rated to 18 dBm, SMA, Solder Pin Control

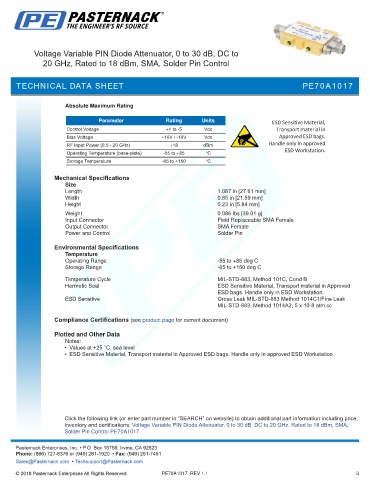

TECHNICAL DATA SHEET PE70A1017

Absolute Maximum Rating

Parameter Rating Units ESD Sensitive Material,
Control Voltage +1 to -5 Vdc Transport material in
Bias Voltage +16V / -16V Vdc Approved ESD bags.
RF Input Power (0.5 - 20 GHz) +18 dBm Handle only in approved
Operating Temperature (base-plate) -55 to +85 °C ESD Workstation.
Storage Temperature -65 to +150 °C .

Mechanical Specifications
Size
Length 1.087 in [27.61 mm]
Width 0.85 in [21.59 mm]
Height 0.23 in [5.84 mm]
.
Weight 0.086 lbs [39.01 g]
Input Connector Field Replaceable SMA Female
Output Connector SMA Female
Power and Control Solder Pin

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C
Storage Range -65 to +150 deg C

Temperature Cycle MIL-STD-883, Method 101C, Cond B
Hermetic Seal ESD Sensitive Material, Transport material in Approved
ESD bags. Handle only in ESD Workstation.
ESD Sensitive Gross Leak MIL-STD-883 Method 1014C1/Fine Leak
MIL-STD-883, Method 1014A2, 5 x 10-8 atm cc

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Voltage Variable PIN Diode Attenuator, 0 to 30 dB, DC to 20 GHz, Rated to 18 dBm, SMA,
Solder Pin Control PE70A1017 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE70A1017 REV 1.1 3
