0 to 20 dB Voltage Variable Attenuator, PIN Diode,
50 MHz to 2.2 GHz, Rated to 10 dBm, SMA

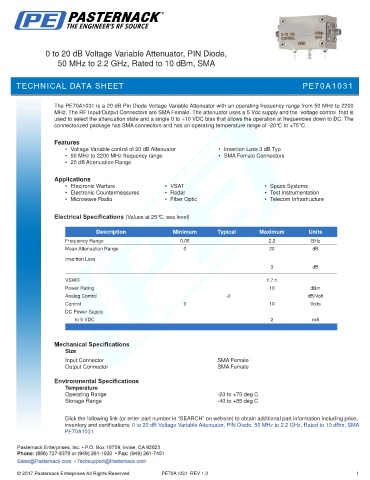

TECHNICAL DATA SHEET PE70A1031

The PE70A1031 is a 20 dB Pin Diode Voltage Variable Attenuator with an operating frequency range from 50 MHz to 2200
MHz. The RF Input/Output Connectors are SMA Female. The attenuator uses a 5 Vdc supply and the voltage control that is
used to select the attenuation state and a single 0 to +10 VDC bias that allows the operation at frequencies down to DC. The
connectorized package has SMA connectors and has an operating temperature range of -20°C to +75°C.

Features
• Voltage Variable control of 20 dB Attenuator • Insertion Loss 3 dB Typ
• 50 MHz to 2200 MHz frequency range • SMA Female Connectors
• 20 dB Attenuation Range

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.05 2.2 GHz
Mean Attenuation Range 0 20 dB
Insertion Loss
3 dB
.
VSWR 1.7:1
Power Rating 10 dBm
Analog Control -2 dB/Volt
Control 0 10 Volts
DC Power Supply
to 5 VDC 2 mA
. .

Mechanical Specifications
Size
.
Input Connector SMA Female
Output Connector SMA Female

Environmental Specifications
Temperature
Operating Range -20 to +75 deg C
Storage Range -40 to +85 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 20 dB Voltage Variable Attenuator, PIN Diode, 50 MHz to 2.2 GHz, Rated to 10 dBm, SMA
PE70A1031

PE70A1031 REV 1.0 1
