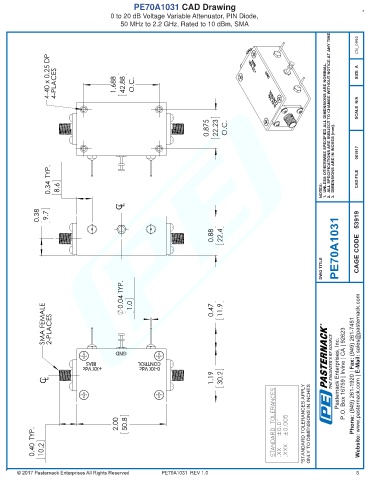

PE70A1031 CAD Drawing
0 to 20 dB Voltage Variable Attenuator, PIN Diode,
50 MHz to 2.2 GHz, Rated to 10 dBm, SMA
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN_0992

4-40 x 0.25 DP 4-PLACES 1.688 42.88 O.C. SIZE A

SCALE N/A

0.875 22.23 O.C. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

TYP. 3. DIMENSIONS ARE IN INCHES [mm]. 061917 CAD FILE

0.34 8.6 NOTES:

C L
0.38 9.7

0.88 22.4

PE70A1031 CAGE CODE 53919
DWG TITLE

0.04 TYP. 1.0

SMA FEMALE 2-PLACES 0.47 11.9 R

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623
C L 1.19 30.2 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

2.00 50.8 STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
TYP. .XX ±0.01 .XXX ±0.005

0.40 10.2

PE70A1031 REV 1.0 5
