0 to 20 dB Voltage Variable Attenuator, PIN Diode,
50 MHz to 2.2 GHz, Rated to 10 dBm, SMA

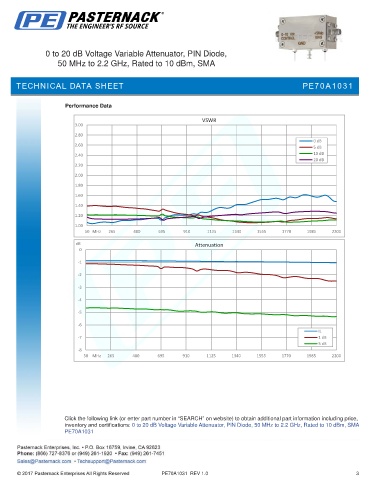

TECHNICAL DATA SHEET PE70A1031

Performance Data

VSWR
3.00
2.80
0 dB
2.60 5 dB
2.40 10 dB
20 dB
2.20
2.00
1.80
1.60
1.40
1.20
1.00
50 MHz 265 480 695 910 1125 1340 1555 1770 1985 2200

dB Attenuation
0

-1
-2

-3
-4

-5
-6
IL
-7 1 dB
5 dB
-8
50 MHz 265 480 695 910 1125 1340 1555 1770 1985 2200

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 20 dB Voltage Variable Attenuator, PIN Diode, 50 MHz to 2.2 GHz, Rated to 10 dBm, SMA
PE70A1031

PE70A1031 REV 1.0 3
