0 to 40 dB Voltage Variable Attenuator, 400 MHz To 6 GHz SMA

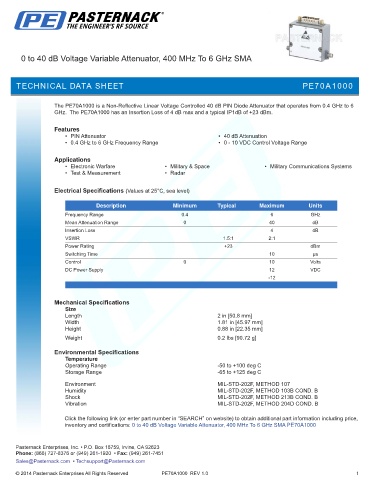

TECHNICAL DATA SHEET PE70A1000

The PE70A1000 is a Non-Reflective Linear Voltage Controlled 40 dB PIN Diode Attenuator that operates from 0.4 GHz to 6
GHz. The PE70A1000 has an Insertion Loss of 4 dB max and a typical IP1dB of +23 dBm.

Features
• PIN Attenuator • 40 dB Attenuation
• 0.4 GHz to 6 GHz Frequency Range • 0 - 10 VDC Control Voltage Range

Applications
• Electronic Warfare • Military & Space • Military Communications Systems
• Test & Measurement • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.4 6 GHz
Mean Attenuation Range 0 40 dB
Insertion Loss 4 dB
VSWR 1.5:1 2:1
Power Rating +23 dBm
Switching Time 10 µs
Control 0 10 Volts
DC Power Supply 12 VDC
-12
. .

Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 1.81 in [45.97 mm]
Height 0.88 in [22.35 mm]
.
Weight 0.2 lbs [90.72 g]

Environmental Specifications
Temperature
Operating Range -50 to +100 deg C
Storage Range -65 to +125 deg C
Environment MIL-STD-202F, METHOD 107
Humidity MIL-STD-202F, METHOD 103B COND. B
Shock MIL-STD-202F, METHOD 213B COND. B
Vibration MIL-STD-202F, METHOD 204D COND. B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 40 dB Voltage Variable Attenuator, 400 MHz To 6 GHz SMA PE70A1000

PE70A1000 REV 1.0 1
