P. 3035

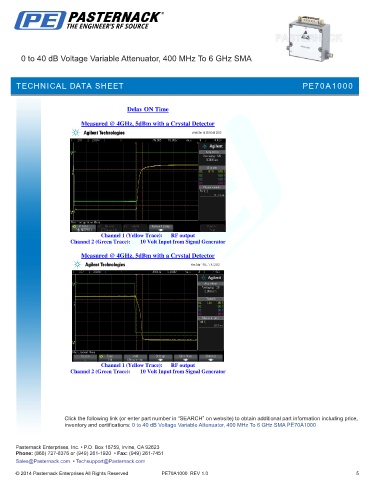

0 to 40 dB Voltage Variable Attenuator, 400 MHz To 6 GHz SMA
TECHNICAL DATA SHEET PE70A1000
Delay ON Time
Measured @ 4GHz, 5dBm with a Crystal Detector
Channel 1 (Yellow Trace): RF output
Channel 2 (Green Trace): 10 Volt Input from Signal Generator
Measured @ 4GHz, 5dBm with a Crystal Detector
Channel 1 (Yellow Trace): RF output
Channel 2 (Green Trace): 10 Volt Input from Signal Generator
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 40 dB Voltage Variable Attenuator, 400 MHz To 6 GHz SMA PE70A1000
PE70A1000 REV 1.0 5
