0 to 60 dB Voltage Variable Attenuator, PIN Diode,
500 MHz To 18 GHz, Rated To 0.1 Watts, SMA

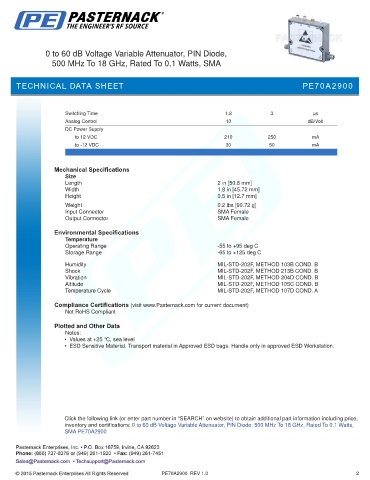

TECHNICAL DATA SHEET PE70A2900

.
Switching Time 1.8 3 µs
Analog Control 10 dB/Volt
DC Power Supply
to 12 VDC 210 250 mA
to -12 VDC 30 50 mA
. .

Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 1.8 in [45.72 mm]
Height 0.5 in [12.7 mm]
.
Weight 0.2 lbs [90.72 g]
Input Connector SMA Female
Output Connector SMA Female

Environmental Specifications
Temperature
Operating Range -55 to +95 deg C
Storage Range -65 to +125 deg C

Humidity MIL-STD-202F, METHOD 103B COND. B
Shock MIL-STD-202F, METHOD 213B COND. B
Vibration MIL-STD-202F, METHOD 204D COND. B
Altitude MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle MIL-STD-202F, METHOD 107D COND. A

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 60 dB Voltage Variable Attenuator, PIN Diode, 500 MHz To 18 GHz, Rated To 0.1 Watts,
SMA PE70A2900

PE70A2900 REV 1.0 2
