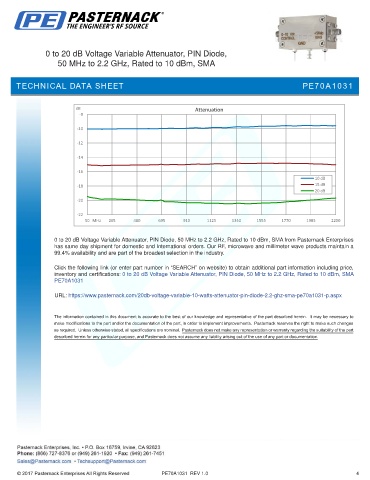

0 to 20 dB Voltage Variable Attenuator, PIN Diode,
50 MHz to 2.2 GHz, Rated to 10 dBm, SMA
TECHNICAL DATA SHEET PE70A1031
dB Attenuation
-8
-10
-12
-14
-16
10 dB
-18 15 dB
20 dB
-20
-22
50 MHz 265 480 695 910 1125 1340 1555 1770 1985 2200
0 to 20 dB Voltage Variable Attenuator, PIN Diode, 50 MHz to 2.2 GHz, Rated to 10 dBm, SMA from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99.4% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 20 dB Voltage Variable Attenuator, PIN Diode, 50 MHz to 2.2 GHz, Rated to 10 dBm, SMA
PE70A1031
URL: https://www.pasternack.com/20db-voltage-variable-10-watts-attenuator-pin-diode-2.2-ghz-sma-pe70a1031-p.aspx
