Voltage Variable PIN Diode Attenuator, 0 to 30 dB, DC to
20 GHz, Rated to 18 dBm, SMA, Solder Pin Control

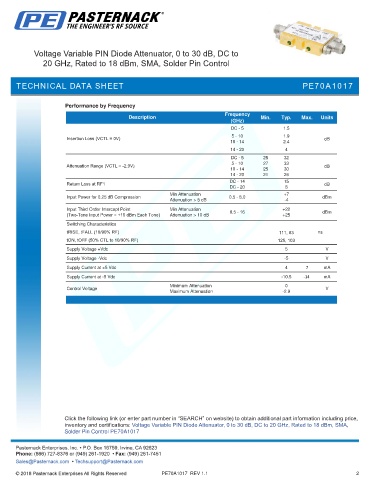

TECHNICAL DATA SHEET PE70A1017

Performance by Frequency
Frequency
Description Min. Typ. Max. Units
(GHz)
DC - 5 1.5
5 - 10 1.9
Insertion Loss (VCTL = 0V) dB
10 - 14 2.4
14 - 20 4
DC - 5 25 32
5 - 10 27 33
Attenuation Range (VCTL = -2.9V) dB
10 - 14 25 30
14 - 20 21 26
Return Loss at RF1 DC - 14 15 dB
DC - 20 8
Min Attenuation +7
Input Power for 0.25 dB Compression 0.5 - 8.0 dBm
Attenuation > 5 dB -4
Input Third Order Intercept Point Min Attenuation +22
(Two-Tone Input Power = +10 dBm Each Tone) Attenuation > 10 dB 0.5 - 16 +25 dBm
Switching Characteristics
tRISE, tFALL (10/90% RF) 111, 83 ns
tON, tOFF (50% CTL to 10/90% RF) 125, 103
Supply Voltage +Vdc 5 V
Supply Voltage -Vdc -5 V
Supply Current at +5 Vdc 4 7 mA
Supply Current at -5 Vdc -10.5 -14 mA
Minimum Attenuation 0
Control Voltage V
Maximum Attenuation -2.9

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Voltage Variable PIN Diode Attenuator, 0 to 30 dB, DC to 20 GHz, Rated to 18 dBm, SMA,
Solder Pin Control PE70A1017 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE70A1017 REV 1.1 2
