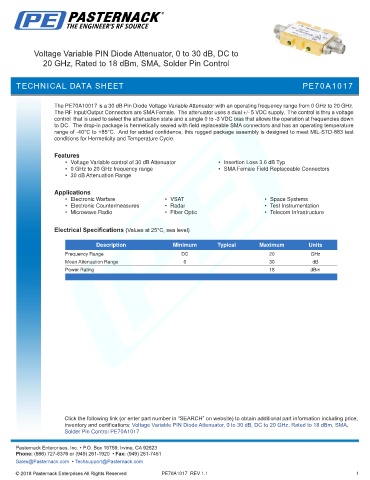

Voltage Variable PIN Diode Attenuator, 0 to 30 dB, DC to
20 GHz, Rated to 18 dBm, SMA, Solder Pin Control

TECHNICAL DATA SHEET PE70A1017

The PE70A10017 is a 30 dB Pin Diode Voltage Variable Attenuator with an operating frequency range from 0 GHz to 20 GHz.
The RF Input/Output Connectors are SMA Female. The attenuator uses a dual +/- 5 VDC supply. The control is thru a voltage
control that is used to select the attenuation state and a single 0 to -3 VDC bias that allows the operation at frequencies down
to DC. The drop-in package is hermetically sealed with field replaceable SMA connectors and has an operating temperature
range of -40°C to +85°C. And for added confidence, this rugged package assembly is designed to meet MIL-STD-883 test
conditions for Hermeticity and Temperature Cycle.

Features
• Voltage Variable control of 30 dB Attenuator • Insertion Loss 3.6 dB Typ
• 0 GHz to 20 GHz frequency range • SMA Female Field Replaceable Connectors
• 30 dB Attenuation Range

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range DC 20 GHz
Mean Attenuation Range 0 30 dB
Power Rating 18 dBm
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Voltage Variable PIN Diode Attenuator, 0 to 30 dB, DC to 20 GHz, Rated to 18 dBm, SMA,
Solder Pin Control PE70A1017 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE70A1017 REV 1.1 1
