0 to 60 dB Voltage Variable Attenuator, PIN
Diode, 2 GHz To 4 GHz, SMA

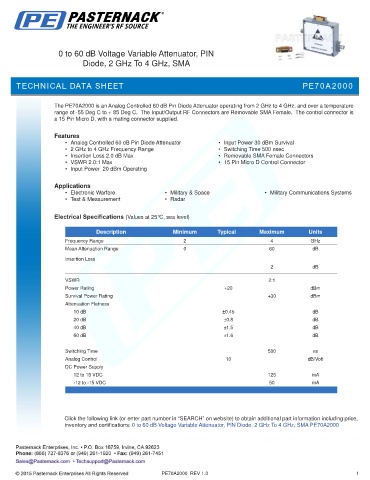

TECHNICAL DATA SHEET PE70A2000

The PE70A2000 is an Analog Controlled 60 dB Pin Diode Attenuator operating from 2 GHz to 4 GHz, and over a temperature
range of -55 Deg C to + 85 Deg C. The Input/Output RF Connectors are Removable SMA Female. The control connector is
a 15 Pin Micro D, with a mating connector supplied.

Features
• Analog Controlled 60 dB Pin Diode Attenuator • Input Power 30 dBm Survival
• 2 GHz to 4 GHz Frequency Range • Switching Time 500 nsec
• Insertion Loss 2.0 dB Max • Removable SMA Female Connectors
• VSWR 2.0:1 Max • 15 Pin Micro D Control Connector
• Input Power 20 dBm Operating

Applications
• Electronic Warfare • Military & Space • Military Communications Systems
• Test & Measurement • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 2 4 GHz
Mean Attenuation Range 0 60 dB
Insertion Loss
2 dB
.
VSWR 2:1
Power Rating +20 dBm
Survival Power Rating +30 dBm
Attenuation Flatness
10 dB ±0.45 dB
20 dB ±0.8 dB
40 dB ±1.5 dB
60 dB ±1.6 dB
.
Switching Time 500 ns
Analog Control 10 dB/Volt
DC Power Supply
12 to 15 VDC 125 mA
-12 to -15 VDC 50 mA
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 60 dB Voltage Variable Attenuator, PIN Diode, 2 GHz To 4 GHz, SMA PE70A2000

PE70A2000 REV 1.0 1
