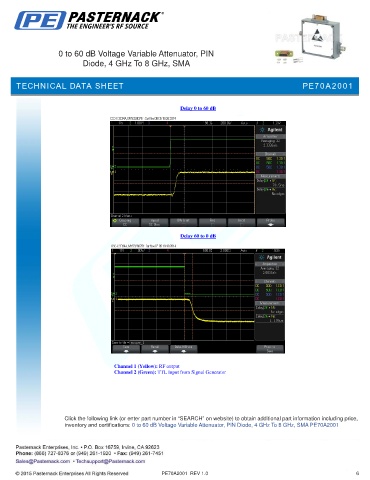

0 to 60 dB Voltage Variable Attenuator, PIN
Diode, 4 GHz To 8 GHz, SMA
TECHNICAL DATA SHEET PE70A2001
Delay 0 to 60 dB
Delay 60 to 0 dB
Channel 1 (Yellow): RF output
Channel 2 (Green): TTL Input from Signal Generator
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 60 dB Voltage Variable Attenuator, PIN Diode, 4 GHz To 8 GHz, SMA PE70A2001
PE70A2001 REV 1.0 6
