0 to 60 dB Voltage Variable Attenuator, PIN
Diode, 8 GHz To 18 GHz, SMA

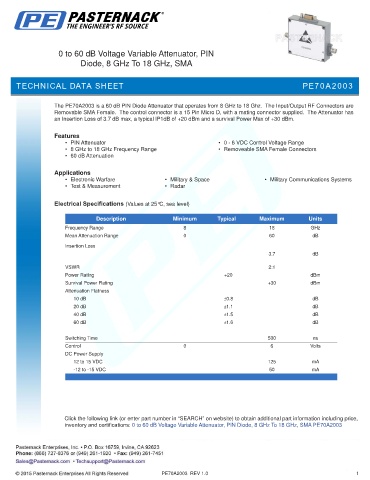

TECHNICAL DATA SHEET PE70A2003

The PE70A2003 is a 60 dB PIN Diode Attenuator that operates from 8 GHz to 18 Ghz. The Input/Output RF Connectors are
Removable SMA Female. The control connector is a 15 Pin Micro D, with a mating connector supplied. The Attenuator has
an Insertion Loss of 3.7 dB max, a typical IP1dB of +20 dBm and a survival Power Max of +30 dBm.

Features
• PIN Attenuator • 0 - 6 VDC Control Voltage Range
• 8 GHz to 18 GHz Frequency Range • Removeable SMA Female Connectors
• 60 dB Attenuation

Applications
• Electronic Warfare • Military & Space • Military Communications Systems
• Test & Measurement • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 8 18 GHz
Mean Attenuation Range 0 60 dB
Insertion Loss
3.7 dB
.
VSWR 2:1
Power Rating +20 dBm
Survival Power Rating +30 dBm
Attenuation Flatness
10 dB ±0.8 dB
20 dB ±1.1 dB
40 dB ±1.5 dB
60 dB ±1.6 dB
.
Switching Time 500 ns
Control 0 6 Volts
DC Power Supply
12 to 15 VDC 125 mA
-12 to -15 VDC 50 mA
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 60 dB Voltage Variable Attenuator, PIN Diode, 8 GHz To 18 GHz, SMA PE70A2003

PE70A2003 REV 1.0 1
