0 to 60 dB Voltage Variable Attenuator, PIN
Diode, 8 GHz To 18 GHz, SMA

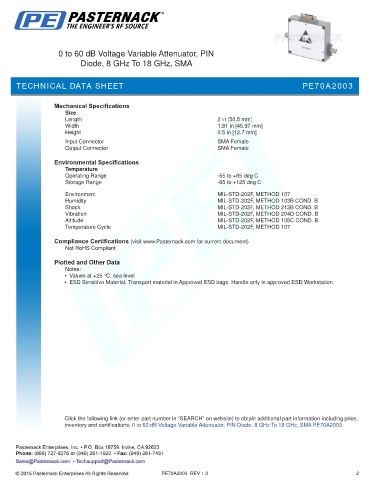

TECHNICAL DATA SHEET PE70A2003

Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 1.81 in [45.97 mm]
Height 0.5 in [12.7 mm]
.
Input Connector SMA Female
Output Connector SMA Female

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C
Storage Range -65 to +125 deg C
Environment MIL-STD-202F, METHOD 107
Humidity MIL-STD-202F, METHOD 103B COND. B
Shock MIL-STD-202F, METHOD 213B COND. B
Vibration MIL-STD-202F, METHOD 204D COND. B
Altitude MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle MIL-STD-202F, METHOD 107

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant

Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 60 dB Voltage Variable Attenuator, PIN Diode, 8 GHz To 18 GHz, SMA PE70A2003

PE70A2003 REV 1.0 2
