20 dB Fixed Attenuator, 1.85mm Male to 1.85mm Female
Passivated Stainless Steel Body Rated to 1 Watt Up to 65 GHz

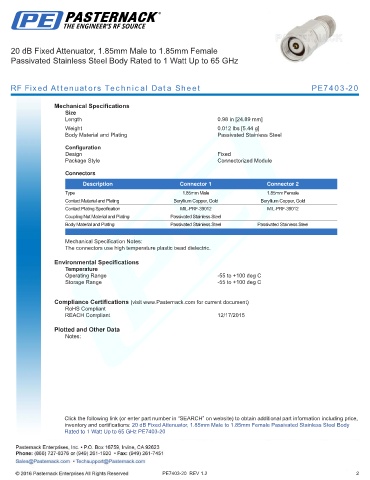

RF Fixed Attenuators Technical Data Sheet PE7403-20

Mechanical Specifications
Size
Length 0.98 in [24.89 mm]
.
Weight 0.012 lbs [5.44 g]
Body Material and Plating Passivated Stainless Steel

Configuration
Design Fixed
Package Style Connectorized Module

Connectors
Description Connector 1 Connector 2
Type 1.85mm Male 1.85mm Female
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-PRF-39012 MIL-PRF-39012
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.
Mechanical Specification Notes:
The connectors use high temperature plastic bead dielectric.

Environmental Specifications
Temperature
Operating Range -55 to +100 deg C
Storage Range -55 to +100 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, 1.85mm Male to 1.85mm Female Passivated Stainless Steel Body
Rated to 1 Watt Up to 65 GHz PE7403-20

PE7403-20 REV 1.2 2
