20 dB Fixed Attenuator, 1.85mm Male to 1.85mm Female
Passivated Stainless Steel Body Rated to 1 Watt Up to 65 GHz
RF Fixed Attenuators Technical Data Sheet PE7403-20

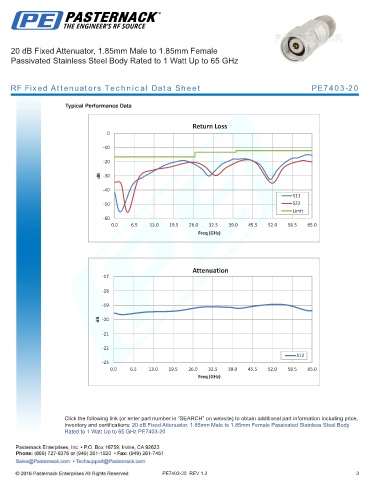

Typical Performance Data
Return Loss
0
-10
-20
dB -30
-40
S11
-50 S22
Limit
-60
0.0 6.5 13.0 19.5 26.0 32.5 39.0 45.5 52.0 58.5 65.0
Freq (GHz)
Attenuation
-17
-18
-19
dB -20
-21
-22
S12
-23
0.0 6.5 13.0 19.5 26.0 32.5 39.0 45.5 52.0 58.5 65.0
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, 1.85mm Male to 1.85mm Female Passivated Stainless Steel Body
Rated to 1 Watt Up to 65 GHz PE7403-20
