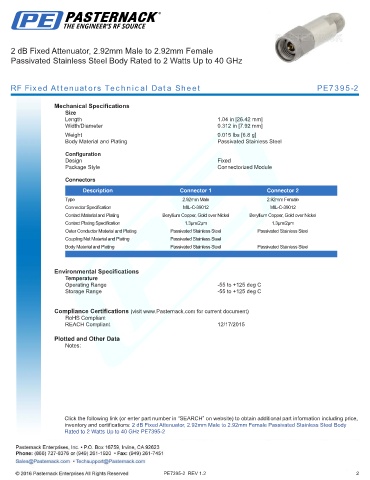

2 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female
Passivated Stainless Steel Body Rated to 2 Watts Up to 40 GHz

RF Fixed Attenuators Technical Data Sheet PE7395-2

Mechanical Specifications
Size
Length 1.04 in [26.42 mm]
Width/Diameter 0.312 in [7.92 mm]
.
Weight 0.015 lbs [6.8 g]
Body Material and Plating Passivated Stainless Steel

Configuration
Design Fixed
Package Style Connectorized Module
Connectors
Description Connector 1 Connector 2
Type 2.92mm Male 2.92mm Female
Connector Specification MIL-C-39012 MIL-C-39012
Contact Material and Plating Beryllium Copper, Gold over Nickel Beryllium Copper, Gold over Nickel
Contact Plating Specification 1.3µm/2µm 1.3µm/2µm
Outer Conductor Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
Storage Range -55 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female Passivated Stainless Steel Body
Rated to 2 Watts Up to 40 GHz PE7395-2
