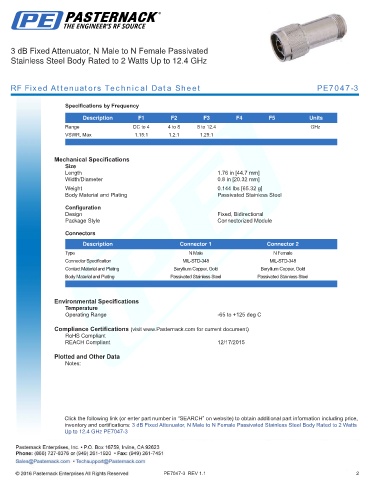

3 dB Fixed Attenuator, N Male to N Female Passivated
Stainless Steel Body Rated to 2 Watts Up to 12.4 GHz

RF Fixed Attenuators Technical Data Sheet PE7047-3

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Range DC to 4 4 to 8 8 to 12.4 GHz
VSWR, Max 1.15:1 1.2:1 1.25:1
.

Mechanical Specifications
Size
Length 1.76 in [44.7 mm]
Width/Diameter 0.8 in [20.32 mm]
.
Weight 0.144 lbs [65.32 g]
Body Material and Plating Passivated Stainless Steel
Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module
Connectors

Description Connector 1 Connector 2
Type N Male N Female
Connector Specification MIL-STD-348 MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, N Male to N Female Passivated Stainless Steel Body Rated to 2 Watts
Up to 12.4 GHz PE7047-3
