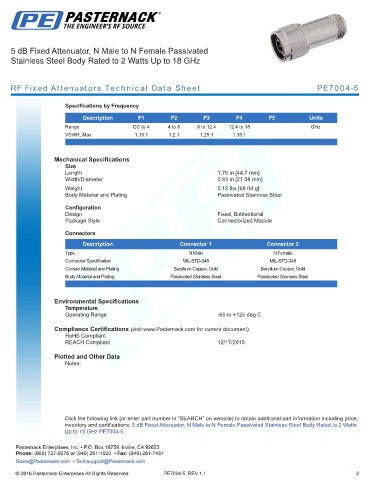

5 dB Fixed Attenuator, N Male to N Female Passivated
Stainless Steel Body Rated to 2 Watts Up to 18 GHz

RF Fixed Attenuators Technical Data Sheet PE7004-5

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Range DC to 4 4 to 8 8 to 12.4 12.4 to 18 GHz
VSWR, Max 1.15:1 1.2:1 1.25:1 1.35:1
.

Mechanical Specifications
Size
Length 1.76 in [44.7 mm]
Width/Diameter 0.83 in [21.08 mm]
.
Weight 0.15 lbs [68.04 g]
Body Material and Plating Passivated Stainless Steel
Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module
Connectors

Description Connector 1 Connector 2
Type N Male N Female
Connector Specification MIL-STD-348 MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 5 dB Fixed Attenuator, N Male to N Female Passivated Stainless Steel Body Rated to 2 Watts
Up to 18 GHz PE7004-5
