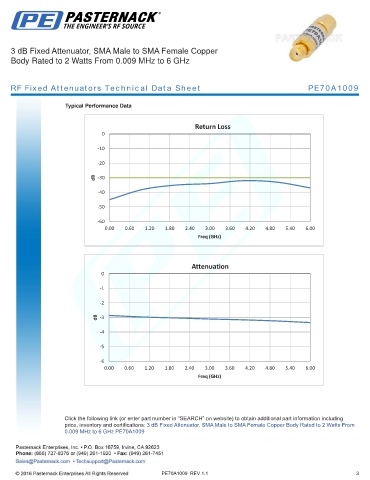

3 dB Fixed Attenuator, SMA Male to SMA Female Copper
Body Rated to 2 Watts From 0.009 MHz to 6 GHz
RF Fixed Attenuators Technical Data Sheet PE70A1009
Typical Performance Data
Return Loss
0
-10
-20
dB -30
-40
-50
-60
0.00 0.60 1.20 1.80 2.40 3.00 3.60 4.20 4.80 5.40 6.00
Freq (GHz)
Attenuation
0
-1
-2
dB -3
-4
-5
-6
0.00 0.60 1.20 1.80 2.40 3.00 3.60 4.20 4.80 5.40 6.00
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 3 dB Fixed Attenuator, SMA Male to SMA Female Copper Body Rated to 2 Watts From
0.009 MHz to 6 GHz PE70A1009
PE70A1009 REV 1.1 3
