3 dB Fixed Attenuator, SMA Male to SMA Female Copper
Body Rated to 2 Watts From 0.009 MHz to 6 GHz

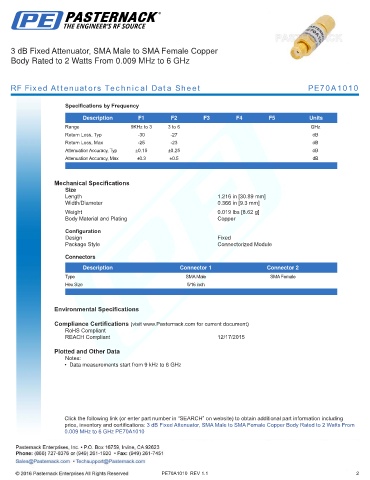

RF Fixed Attenuators Technical Data Sheet PE70A1010
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Range 9KHz to 3 3 to 6 GHz
Return Loss, Typ -30 -27 dB
Return Loss, Max -25 -23 dB
Attenuation Accuracy, Typ ±0.15 ±0.25 dB
Attenuation Accuracy, Max ±0.3 ±0.5 dB
.
Mechanical Specifications
Size
Length 1.216 in [30.89 mm]
Width/Diameter 0.366 in [9.3 mm]
.
Weight 0.019 lbs [8.62 g]
Body Material and Plating Copper
Configuration
Design Fixed
Package Style Connectorized Module
Connectors
Description Connector 1 Connector 2
Type SMA Male SMA Female
Hex Size 5/16 inch
.
Environmental Specifications
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015
Plotted and Other Data
Notes:
• Data measurements start from 9 kHz to 6 GHz
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 3 dB Fixed Attenuator, SMA Male to SMA Female Copper Body Rated to 2 Watts From
0.009 MHz to 6 GHz PE70A1010
