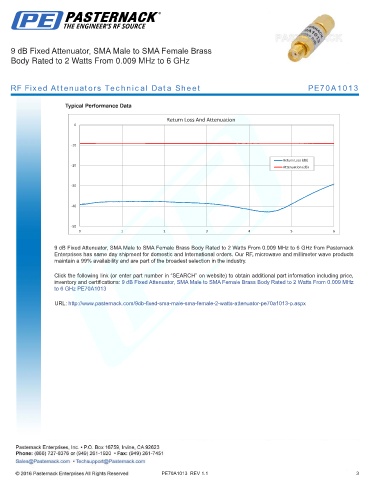

9 dB Fixed Attenuator, SMA Male to SMA Female Brass
Body Rated to 2 Watts From 0.009 MHz to 6 GHz
RF Fixed Attenuators Technical Data Sheet PE70A1013
Typical Performance Data
Return Loss And Attenuation
0
-10
Return Loss (dB)
-20 Attenuation (dB)
-30
-40
-50
0 1 2 3 4 5 6
9 dB Fixed Attenuator, SMA Male to SMA Female Brass Body Rated to 2 Watts From 0.009 MHz to 6 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 9 dB Fixed Attenuator, SMA Male to SMA Female Brass Body Rated to 2 Watts From 0.009 MHz
to 6 GHz PE70A1013
URL: http://www.pasternack.com/9db-fixed-sma-male-sma-female-2-watts-attenuator-pe70a1013-p.aspx
PE70A1013 REV 1.1 3
