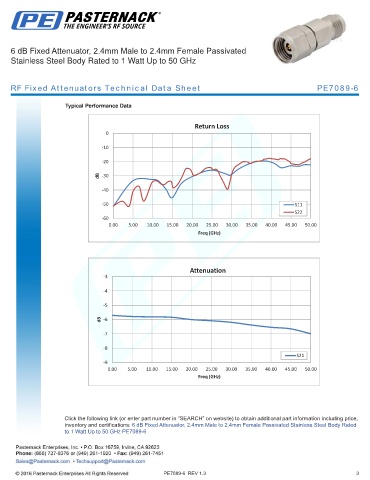

6 dB Fixed Attenuator, 2.4mm Male to 2.4mm Female Passivated
Stainless Steel Body Rated to 1 Watt Up to 50 GHz
RF Fixed Attenuators Technical Data Sheet PE7089-6
Typical Performance Data
Return Loss
0
-10
-20
dB -30
-40
-50 S11
S22
-60
0.00 5.00 10.00 15.00 20.00 25.00 30.00 35.00 40.00 45.00 50.00
Freq (GHz)
Attenuation
-3
-4
-5
dB -6
-7
-8
S21
-9
0.00 5.00 10.00 15.00 20.00 25.00 30.00 35.00 40.00 45.00 50.00
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, 2.4mm Male to 2.4mm Female Passivated Stainless Steel Body Rated
to 1 Watt Up to 50 GHz PE7089-6
PE7089-6 REV 1.3 3
