1 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female
Passivated Stainless Steel Body Rated to 1 Watt Up to 40 GHz

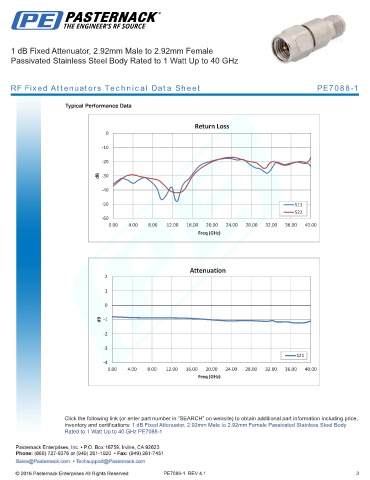

RF Fixed Attenuators Technical Data Sheet PE7088-1

Typical Performance Data

Return Loss
0

-10

-20

dB -30
-40

-50 S11
S22
-60
0.00 4.00 8.00 12.00 16.00 20.00 24.00 28.00 32.00 36.00 40.00
Freq (GHz)

Attenuation
2

1

0

dB -1

-2

-3
S21
-4
0.00 4.00 8.00 12.00 16.00 20.00 24.00 28.00 32.00 36.00 40.00
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female Passivated Stainless Steel Body
Rated to 1 Watt Up to 40 GHz PE7088-1

PE7088-1 REV 4.1 3
