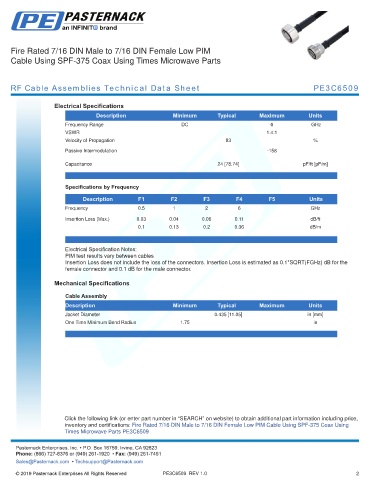

Fire Rated 7/16 DIN Male to 7/16 DIN Female Low PIM
Cable Using SPF-375 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6509

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.4:1
Velocity of Propagation 83 %
Passive Intermodulation -158

Capacitance 24 [78.74] pF/ft [pF/m]

.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2 6 GHz
Insertion Loss (Max.) 0.03 0.04 0.06 0.11 dB/ft
0.1 0.13 0.2 0.36 dB/m

.
Electrical Specification Notes:
PIM test results vary between cables
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1*SQRT(FGHz) dB for the
female connector and 0.1 dB for the male connector.

Mechanical Specifications
Cable Assembly
Description Minimum Typical Maximum Units
Jacket Diameter 0.435 [11.05] in [mm]
One Time Minimum Bend Radius 1.75 in
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Fire Rated 7/16 DIN Male to 7/16 DIN Female Low PIM Cable Using SPF-375 Coax Using
Times Microwave Parts PE3C6509 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
