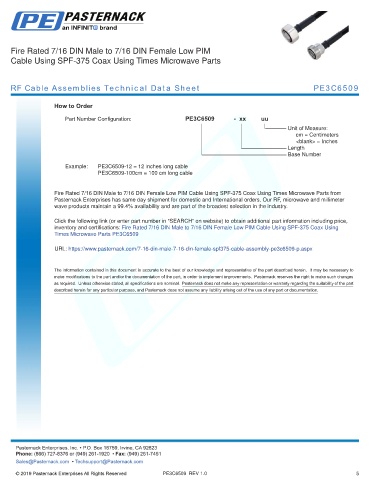

Fire Rated 7/16 DIN Male to 7/16 DIN Female Low PIM
Cable Using SPF-375 Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6509

How to Order

Part Number Configuration: PE3C6509 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE3C6509-12 = 12 inches long cable
PE3C6509-100cm = 100 cm long cable

Fire Rated 7/16 DIN Male to 7/16 DIN Female Low PIM Cable Using SPF-375 Coax Using Times Microwave Parts from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Fire Rated 7/16 DIN Male to 7/16 DIN Female Low PIM Cable Using SPF-375 Coax Using
Times Microwave Parts PE3C6509
URL: https://www.pasternack.com/7-16-din-male-7-16-din-female-spf375-cable-assembly-pe3c6509-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6509 REV 1.0 5
