7/16 DIN Male to 7/16 DIN Female Cable
Using 1/2 inch Helical Coax, RoHS

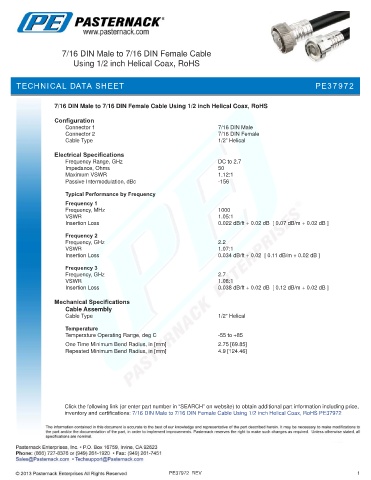

TECHNICAL D PE37972
TECHNICAL DATA SHEETATA SHEET

7/16 DIN Male to 7/16 DIN Female Cable Using 1/2 inch Helical Coax, RoHS

Configuration
Connector 1 7/16 DIN Male
Connector 2 7/16 DIN Female
Cable Type 1/2” Helical

Electrical Specifications
Frequency Range, GHz DC to 2.7
Impedance, Ohms 50
Maximum VSWR 1.12:1
Passive Intermodulation, dBc -156
Typical Performance by Frequency
Frequency 1
Frequency, MHz 1000
VSWR 1.05:1
Insertion Loss 0.022 dB/ft + 0.02 dB [ 0.07 dB/m + 0.02 dB ]

Frequency 2
Frequency, GHz 2.2
VSWR 1.07:1
Insertion Loss 0.034 dB/ft + 0.02 [ 0.11 dB/m + 0.02 dB ]
Frequency 3
Frequency, GHz 2.7
VSWR 1.08:1
Insertion Loss 0.038 dB/ft + 0.02 dB [ 0.12 dB/m + 0.02 dB ]

Mechanical Specifications
Cable Assembly
Cable Type 1/2” Helical

Temperature
Temperature Operating Range, deg C -55 to +85
.
One Time Minimum Bend Radius, in [mm] 2.75 [69.85]
Repeated Minimum Bend Radius, in [mm] 4.9 [124.46]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Female Cable Using 1/2 inch Helical Coax, RoHS PE37972

PE37972 REV 1
