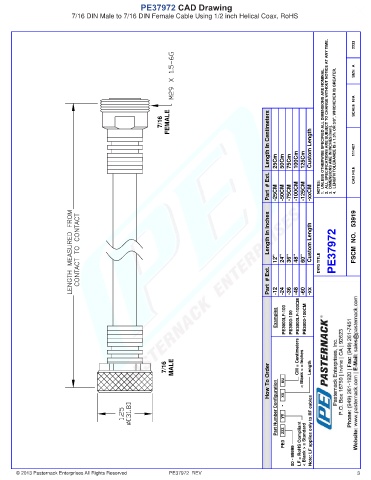

PE37972 CAD Drawing
7/16 DIN Male to 7/16 DIN Female Cable Using 1/2 inch Helical Coax, RoHS

2233

SIZE A

SCALE N/A

Length In Centimeters 25Cm 50Cm 75Cm 100Cm 125Cm Custom Length 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER. 111407
7/16 FEMALE 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

Part # Ext. -25CM -50CM -75CM -100CM -125CM -xxCM NOTES: CAD FILE

Length In Inches Custom Length FSCM NO. 53919

12'' 24" 36" 48" 60" DWG TITLE PE37972

Part # Ext. -12 -24 -36 -48 -60 -xx

Examples PE3000LF-100 PE3000-100 PE3000LF-100CM PE3000-100CM

CM = Centimeters

7/16 MALE < Blank > = Inches Length
How To Order uu

Part Number Configuration xx - yy

PE3 zzz LF = RoHS Compliant < Blank > = Standard Note: LF applies only to RF cables
00 - 99999

© 2013 Pasternack Enterprises All Rights Reserved PE37972 REV 3
