Outdoor Rated 7/16 DIN Male to N Male Low PIM Cable
Using SPO-250 Coax Using Times Microwave Parts

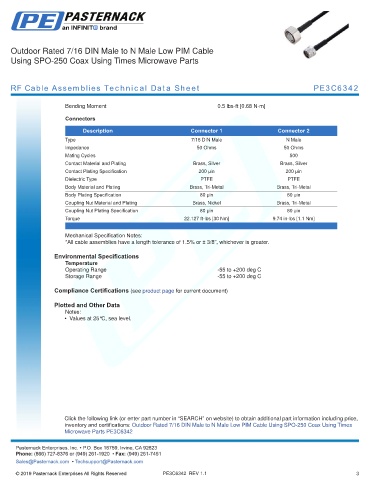

RF Cable Assemblies Technical Data Sheet PE3C6342

Bending Moment 0.5 lbs-ft [0.68 N-m]

Connectors
Description Connector 1 Connector 2
Type 7/16 DIN Male N Male
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Brass, Silver Brass, Silver
Contact Plating Specification 200 µin 200 µin
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Body Plating Specification 80 µin 80 µin
Coupling Nut Material and Plating Brass, Nickel Brass, Tri-Metal
Coupling Nut Plating Specification 80 µin 80 µin
Torque 22.127 ft-lbs [30 Nm] 9.74 in-lbs [1.1 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +200 deg C
Storage Range -55 to +200 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Outdoor Rated 7/16 DIN Male to N Male Low PIM Cable Using SPO-250 Coax Using Times
Microwave Parts PE3C6342 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C6342 REV 1.1 3
