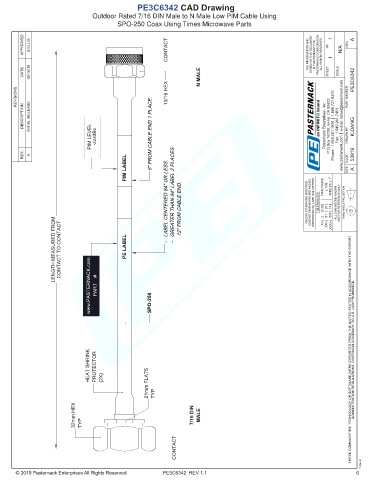

PE3C6342 CAD Drawing
Outdoor Rated 7/16 DIN Male to N Male Low PIM Cable Using
SPO-250 Coax Using Times Microwave Parts

APPROVED S.ELLIS CONTACT THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 05/16/19 N MALE SHEET OF SCALE PE3C6342

REVISIONS 13/16 HEX PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

PIM LEVEL -zzzdBc 6" FROM CABLE END 1 PLACE. DRAWN BY

REV. A CAGE 53919
PIM LABEL - LABEL CENTERED 84" OR LESS. - GREATER THAN 84" LABEL 2 PLACES UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION SIZE A

LENGTH MEASURED FROM CONTACT TO CONTACT PE LABEL 12" FROM CABLE END. .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

www.PASTERNACK.com PART # SPO-250

HEAT SHRINK PROTECTOR THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

21mm FLATS TYP
(2X)

32mm HEX TYP 7/16 DIN MALE

Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
CONTACT

T-Rev.B
PE3C6342 REV 1.1 6
