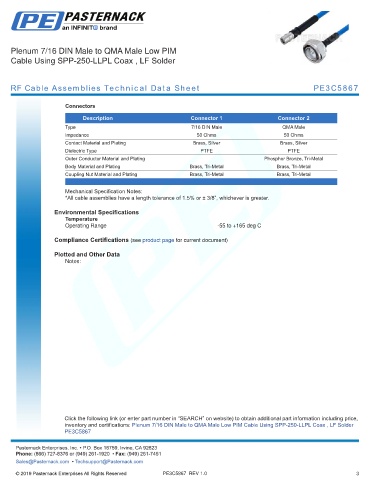

Plenum 7/16 DIN Male to QMA Male Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder
RF Cable Assemblies Technical Data Sheet PE3C5867
Connectors
Description Connector 1 Connector 2
Type 7/16 DIN Male QMA Male
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Brass, Silver
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Phosphor Bronze, Tri-Metal
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Coupling Nut Material and Plating Brass, Tri-Metal Brass, Tri-Metal
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Male to QMA Male Low PIM Cable Using SPP-250-LLPL Coax , LF Solder
PE3C5867 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C5867 REV 1.0 3
