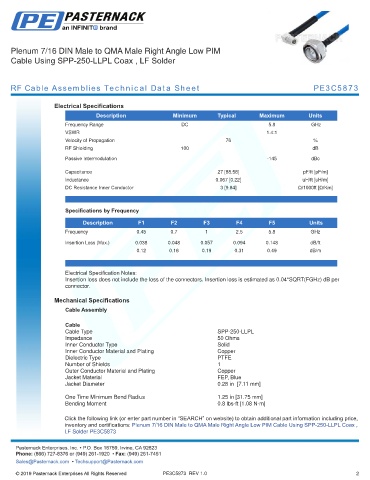

Plenum 7/16 DIN Male to QMA Male Right Angle Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE3C5873

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 5.8 GHz
VSWR 1.4:1
Velocity of Propagation 76 %
RF Shielding 100 dB
Passive Intermodulation -145 dBc

Capacitance 27 [88.58] pF/ft [pF/m]
Inductance 0.067 [0.22] uH/ft [uH/m]
DC Resistance Inner Conductor 3 [9.84] Ω/1000ft [Ω/Km]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.45 0.7 1 2.5 5.8 GHz
Insertion Loss (Max.) 0.038 0.048 0.057 0.094 0.148 dB/ft
0.12 0.16 0.19 0.31 0.49 dB/m

.
Electrical Specification Notes:
Insertion loss does not include the loss of the connectors. Insertion loss is estimated as 0.04*SQRT(FGHz) dB per
connector.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type SPP-250-LLPL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Copper
Jacket Material FEP, Blue
Jacket Diameter 0.28 in [7.11 mm]
.
One Time Minimum Bend Radius 1.25 in [31.75 mm]
Bending Moment 0.8 lbs-ft [1.08 N-m]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Male to QMA Male Right Angle Low PIM Cable Using SPP-250-LLPL Coax ,
LF Solder PE3C5873 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5873 REV 1.0 2
