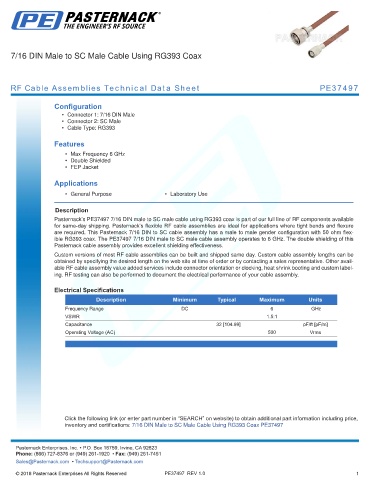

7/16 DIN Male to SC Male Cable Using RG393 Coax

RF Cable Assemblies Technical Data Sheet PE37497

Configuration
• Connector 1: 7/16 DIN Male
• Connector 2: SC Male
• Cable Type: RG393

Features
• Max Frequency 6 GHz
• Double Shielded
• FEP Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE37497 7/16 DIN male to SC male cable using RG393 coax is part of our full line of RF components available
for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure
are required. This Pasternack 7/16 DIN to SC cable assembly has a male to male gender configuration with 50 ohm flex-
ible RG393 coax. The PE37497 7/16 DIN male to SC male cable assembly operates to 6 GHz. The double shielding of this
Pasternack cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Capacitance 32 [104.99] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to SC Male Cable Using RG393 Coax PE37497
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE37497 REV 1.0 1
