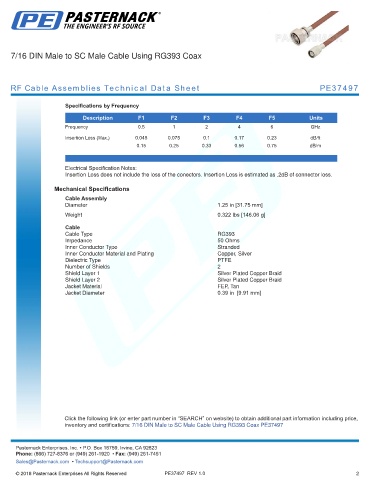

7/16 DIN Male to SC Male Cable Using RG393 Coax

RF Cable Assemblies Technical Data Sheet PE37497

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2 4 6 GHz
Insertion Loss (Max.) 0.045 0.075 0.1 0.17 0.23 dB/ft
0.15 0.25 0.33 0.56 0.75 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the conectors. Insertion Loss is estimated as .2dB of connector loss.

Mechanical Specifications
Cable Assembly
Diameter 1.25 in [31.75 mm]
.
Weight 0.322 lbs [146.06 g]
Cable
Cable Type RG393
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.39 in [9.91 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to SC Male Cable Using RG393 Coax PE37497
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE37497 REV 1.0 2
