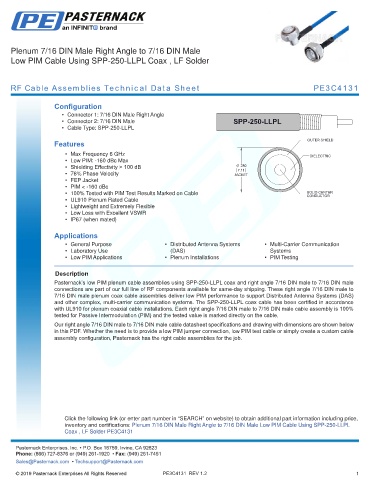

Page 1490 - 1.0/2.3 to BMA RF Cable Assembly Datasheets

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male
Low PIM Cable Using SPP-250-LLPL Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE3C4131

Configuration
• Connector 1: 7/16 DIN Male Right Angle
• Connector 2: 7/16 DIN Male SPP-250-LLPL
• Cable Type: SPP-250-LLPL

Features OUTER SHIELD
• Max Frequency 6 GHz DIELECTRIC
• Low PIM: -160 dBc Max
• Shielding Effectivity > 100 dB .280
7.11
• 76% Phase Velocity JACKET
• FEP Jacket
• PIM < -160 dBc
• 100% Tested with PIM Test Results Marked on Cable SOLID CENTER
CONDUCTOR
• UL910 Plenum Rated Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)

Applications
• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s low PIM plenum cable assemblies using SPP-250-LLPL coax and right angle 7/16 DIN male to 7/16 DIN male
connections are part of our full line of RF components available for same-day shipping. These right angle 7/16 DIN male to
7/16 DIN male plenum coax cable assemblies deliver low PIM performance to support Distributed Antenna Systems (DAS)
and other complex, multi-carrier communication systems. The SPP-250-LLPL coax cable has been certified in accordance
with UL910 for plenum coaxial cable installations. Each right angle 7/16 DIN male to 7/16 DIN male cable assembly is 100%
tested for Passive Intermodulation (PIM) and the tested value is marked directly on the cable.
Our right angle 7/16 DIN male to 7/16 DIN male cable datasheet specifications and drawing with dimensions are shown below
in this PDF. Whether the need is to provide a low PIM jumper connection, low PIM test cable or simply create a custom cable
assembly configuration, Pasternack has the right cable assemblies for the job.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable Using SPP-250-LLPL
Coax , LF Solder PE3C4131 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4131 REV 1.2 1
