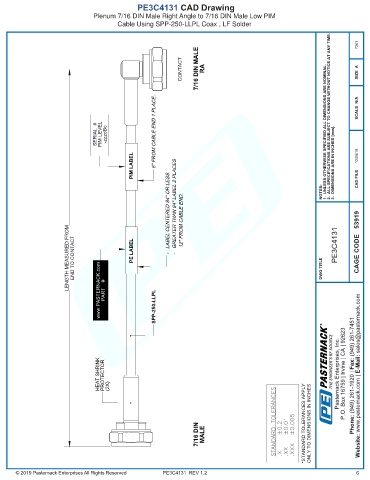

PE3C4131 CAD Drawing
Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder

7361

CONTACT 7/16 DIN MALE RA SIZE A

SERIAL # PIM LEVEL -zzzdBc 6" FROM CABLE END 1 PLACE. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

PIM LABEL 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
12/05/18

- LABEL CENTERED 84" OR LESS. - GREATER THAN 84" LABEL 2 PLACES 12" FROM CABLE END. NOTES:

LENGTH MEASURED FROM END TO CONTACT www.PASTERNACK.com PART # PE LABEL DWG TITLE PE3C4131 CAGE CODE 53919

SPP-250-LLPL

R
P.O. Box 16759 | Irvine | CA | 92623
THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

HEAT SHRINK PROTECTOR (2X) Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2
7/16 DIN MALE
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4131 REV 1.2 6
