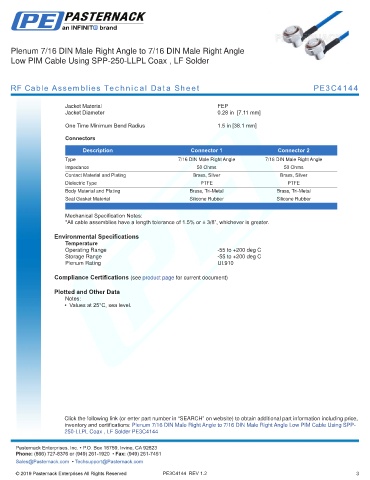

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Right Angle
Low PIM Cable Using SPP-250-LLPL Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE3C4144

Jacket Material FEP
Jacket Diameter 0.28 in [7.11 mm]
.
One Time Minimum Bend Radius 1.5 in [38.1 mm]

Connectors
Description Connector 1 Connector 2
Type 7/16 DIN Male Right Angle 7/16 DIN Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Silver Brass, Silver
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
Seal Gasket Material Silicone Rubber Silicone Rubber
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +200 deg C
Storage Range -55 to +200 deg C
Plenum Rating UL910
Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Right Angle Low PIM Cable Using SPP-
250-LLPL Coax , LF Solder PE3C4144 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4144 REV 1.2 3
