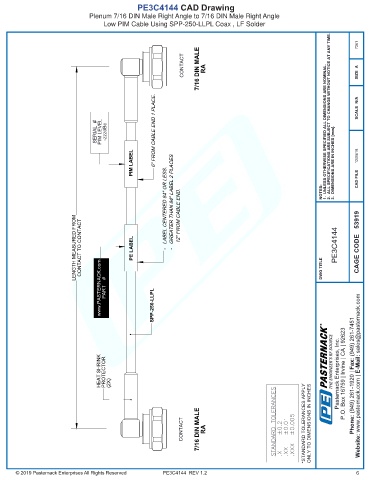

PE3C4144 CAD Drawing
Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Right Angle
Low PIM Cable Using SPP-250-LLPL Coax , LF Solder
7361
CONTACT 7/16 DIN MALE RA SIZE A
SERIAL # PIM LEVEL -zzzdBc 6" FROM CABLE END 1 PLACE. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
PIM LABEL - GREATER THAN 84" LABEL 2 PLACES NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
12/05/18
LENGTH MEASURED FROM CONTACT TO CONTACT PE LABEL - LABEL CENTERED 84" OR LESS. 12" FROM CABLE END. PE3C4144 CAGE CODE 53919
www.PASTERNACK.com PART # SPP-250-LLPL DWG TITLE
