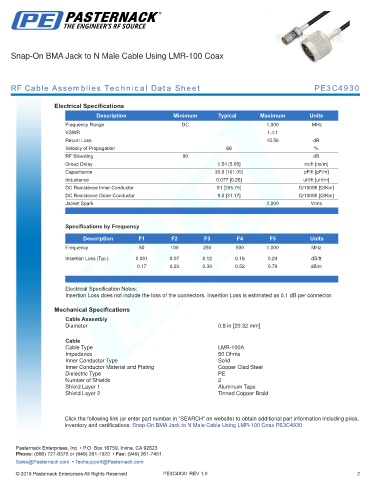

Snap-On BMA Jack to N Male Cable Using LMR-100 Coax

RF Cable Assemblies Technical Data Sheet PE3C4930

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 66 %
RF Shielding 90 dB
Group Delay 1.54 [5.05] ns/ft [ns/m]
Capacitance 30.8 [101.05] pF/ft [pF/m]
Inductance 0.077 [0.25] uH/ft [uH/m]
DC Resistance Inner Conductor 81 [265.75] Ω/1000ft [Ω/Km]
DC Resistance Outer Conductor 9.5 [31.17] Ω/1000ft [Ω/Km]
Jacket Spark 2,000 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz

Insertion Loss (Typ.) 0.051 0.07 0.12 0.16 0.24 dB/ft
0.17 0.23 0.39 0.52 0.79 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.8 in [20.32 mm]
.
Cable
Cable Type LMR-100A
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to N Male Cable Using LMR-100 Coax PE3C4930
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
