Snap-On BMA Jack to N Male Cable Using LMR-100 Coax

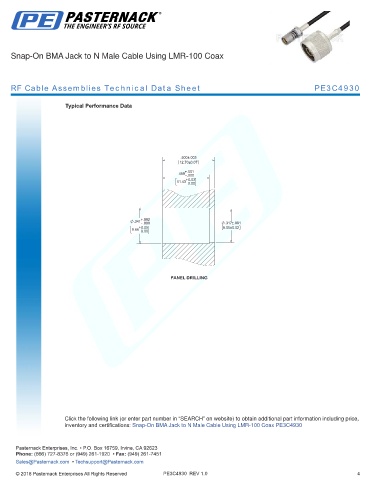

RF Cable Assemblies Technical Data Sheet PE3C4930

Typical Performance Data
2X
#2-56 UNC-2B
.378 +.000
-.002
0.00
9.60 -0.05

.559±.004
.500±.003 14.20±0.10
12.70±0.07
.450 +.001
-.000
11.43 +0.03
0.00

MOUNTING HOLE

.243
.242
.341 +.002 .317±.001 6.17
-.000
8.66 +0.05 8.05±0.02 6.15
0.00

MOUNTING HOLE
PANEL DRILLING

.320 +.001
-.000
8.13 +0.03
0.00

MOUNTING HOLE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to N Male Cable Using LMR-100 Coax PE3C4930
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
SECTION A-A
SCALE 4 : 1

A A
PE3C4930 REV 1.0 4
