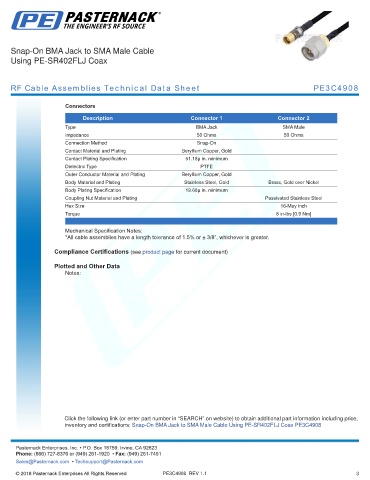

Snap-On BMA Jack to SMA Male Cable
Using PE-SR402FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C4908

Connectors

Description Connector 1 Connector 2
Type BMA Jack SMA Male
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On
Contact Material and Plating Beryllium Copper, Gold
Contact Plating Specification 51.18µ in. minimum
Dielectric Type PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Stainless Steel, Gold Brass, Gold over Nickel
Body Plating Specification 19.68µ in. minimum
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 16-May inch
Torque 8 in-lbs [0.9 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On BMA Jack to SMA Male Cable Using PE-SR402FLJ Coax PE3C4908
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4908 REV 1.1 3
