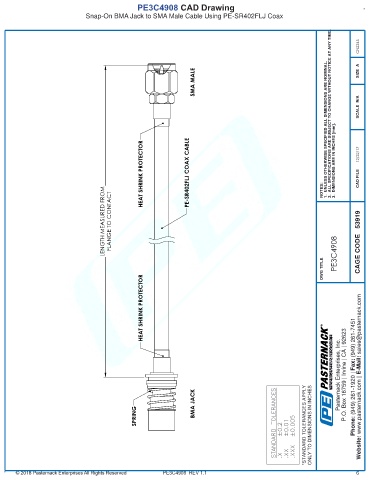

PE3C4908 CAD Drawing
Snap-On BMA Jack to SMA Male Cable Using PE-SR402FLJ Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
 SIZE A

SCALE N/A

  NOTES: 3. DIMENSIONS ARE IN INCHES [mm].  CAD FILE

  CAGE CODE 53919

DWG TITLE 

 R sales@pasternack.com

Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 E-Mail:



  *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES Website: www.pasternack.com |



Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE3C4908 REV 1.1 6
